Product Introduction

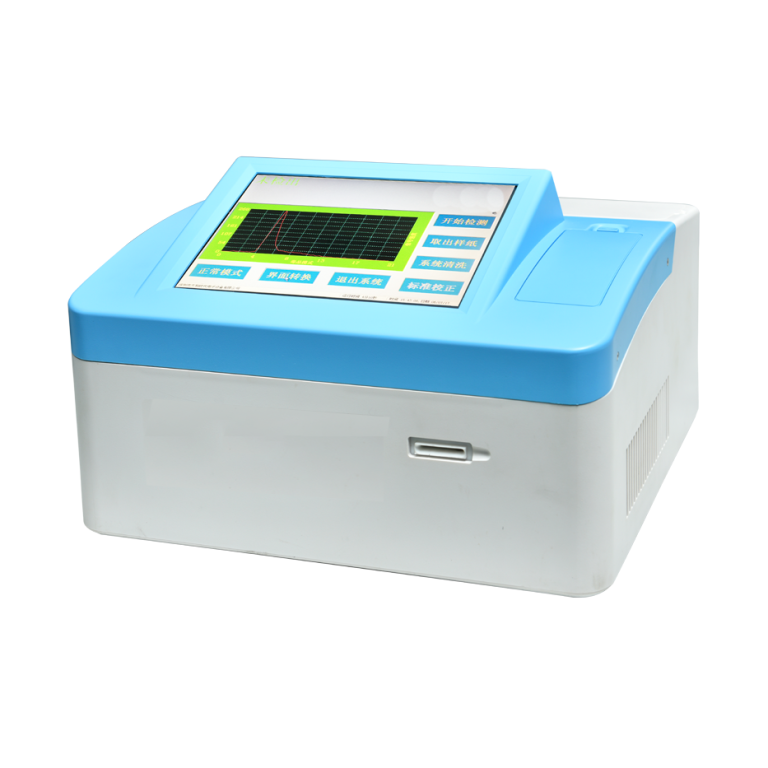

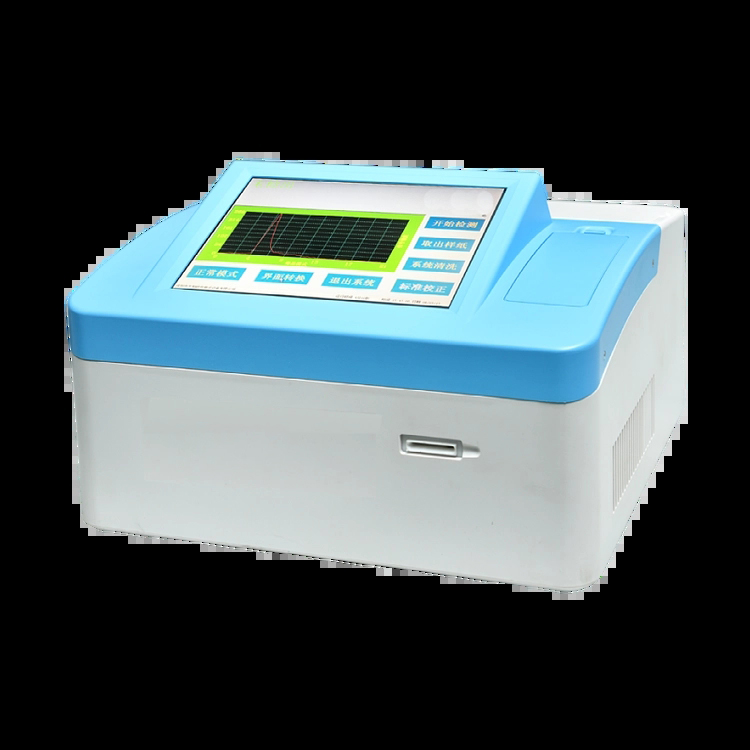

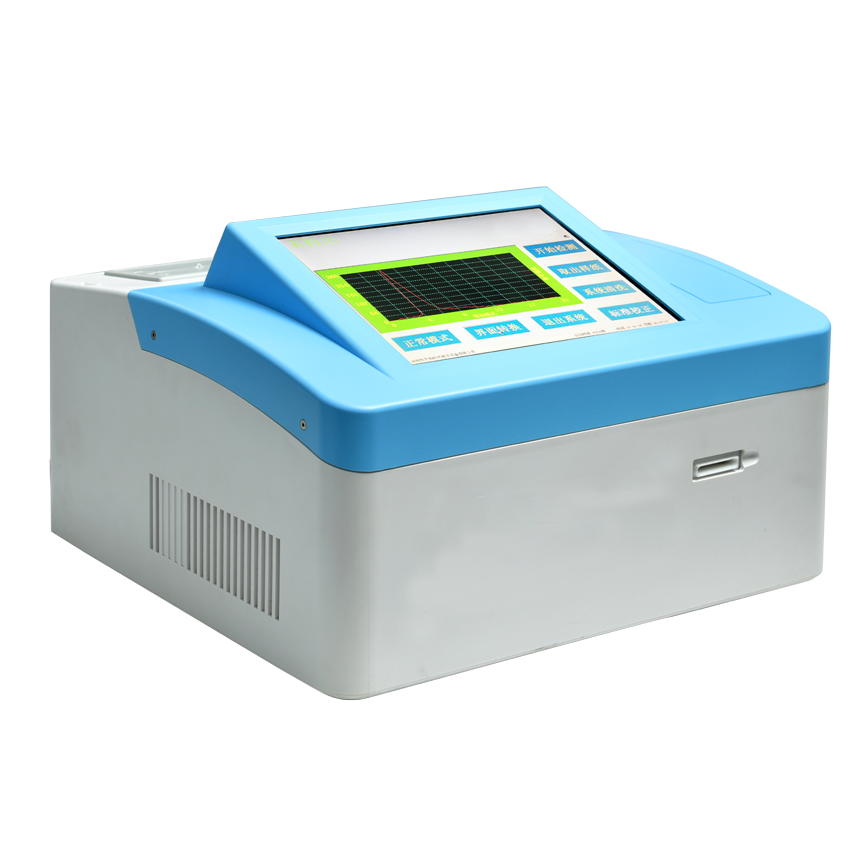

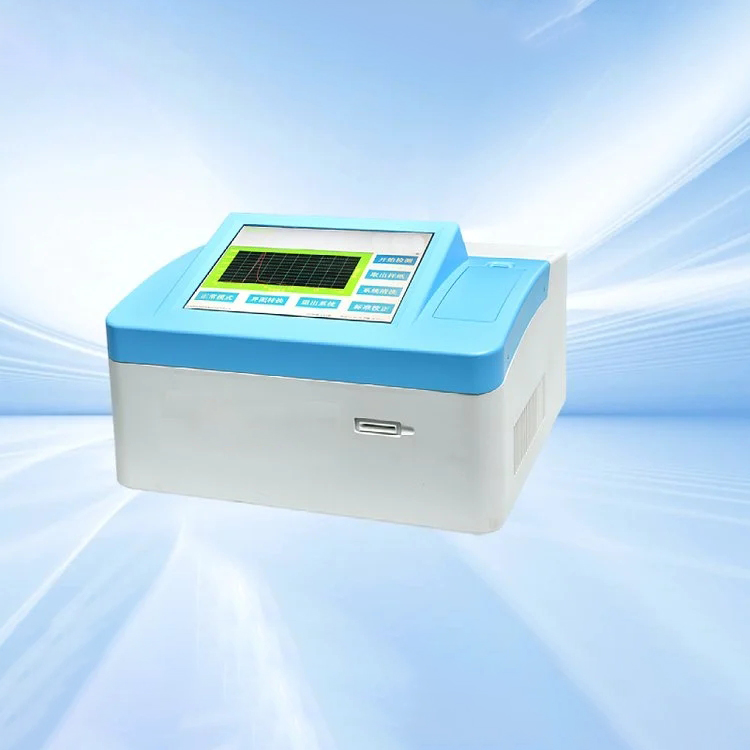

The PA2800S synchronous desktop trace explosive drug detector adopts advanced vacuum ultraviolet lamp ionization technology, which has the characteristics of fast detection speed, high accuracy, simple operation, low false alarm rate, distinguishable dangerous goods types, low power consumption, small size, light weight, easy to carry, easy to maintain, strong adaptability to the environment and requirements. It can accurately detect black powder and all explosives and drugs specified by the International Civil Aviation Organization.

Product Features
Accurate detection: Using advanced vacuum ultraviolet lamp ionization technology, the composition types of dangerous goods can be accurately identified, and the name and quantity of the detected goods can be detected. When encountering dangerous goods, different colors are displayed on the monitor, and an alarm sound is emitted. The detection results are displayed in the form of spectra, bar charts, etc.
One machine dual-mode: adopting positive and negative dual modes, one machine can achieve dual-mode detection of explosives and drugs.
Data printing: The built-in printer can print the test results at any time.
Accurate identification: able to accurately identify the types of components of dangerous goods and report the name of the inspected dangerous goods.
Micro detection: The globally unique black powder nanogram level detection performance can detect dangerous goods such as fireworks and firecrackers, civilian homemade explosives, etc.
Fast analysis: The detection and analysis speed is faster than similar products, with results available within 6 seconds.
Automatic calibration: With automatic calibration function, it can adapt to various external environmental changes.
Automatic cleaning: The internal circulation renewable gas purification system can clean and purify the interior of the instrument system, and can quickly and automatically clean after each detection.
Automatic diagnosis: It has the function of automatic fault diagnosis and can prompt and issue warnings in real time. Users can judge whether the instrument can operate normally based on the warnings.
Real time update: Open database, sample library information can be upgraded at any time, and alarm threshold parameters can be set and modified by authorized users.
Real time storage: It has functions such as real-time data storage, retrieval, and export, with a storage capacity of no less than 100000 records.
Full color screen: equipped with a 10.4-inch TFT color touch screen.
Dustproof design: The instrument inlet has protective devices against dust and pollution.
Network connection: Supports wired network (LAN), wireless network (WIFI), with Bluetooth connection, USB interface and other functions.
Service guarantee: 24-hour after-sales telephone is available to provide technical support, installation, maintenance and repair to customers at any time.

Detectable explosives： include various military, civilian, and homemade explosives such as TNT, Hesogen, Taian, nitroglycerin, ammonium nitrate, black powder, dinitrotoluene, Tequila, Octogen, Gina, etc. New samples can be added as needed.
Detectable drugs：cocaine hydrochloride, heroin hydrochloride, tetrahydrocannabinol, methamphetamine (methamphetamine), ketamine hydrochloride (K powder), morphine hydrochloride, etc. New samples can be added as needed.

Sensitivity: PG level
Analysis time: ≤ 6s
Start time:<15 minutes
False alarm rate: ≤ 1%
Detection rate: ≥ 99%
Language: There is a selection function between Chinese and English systems
Database: An open database that can be updated at any time
Sampling method: Trace particle adsorption sampling, paper wiping sampling
Detection type: It can achieve full detection of drugs and explosives
Interface conversion: The interface can be freely switched, with one interface displaying a bar chart and the other displaying a mass spectrum
Data storage: It has real-time data storage function and can convert detection data into images or TXT format for export.
Dangerous goods editor: can edit the name, peak value, peak matching number, and deviation value of the inspected goods
Automatic cleaning: It can achieve blowing and cleaning of residual samples in the instrument pipeline.
Alarm methods: optional alarms such as sound, light, and electricity.
