Introduction to R&D and Production Enterprises ——

        Chinama Optoelectronics Technology is a professional and experienced team led by a senior engineer of the Chinese National Army who has been engaged in the research and development of holographic diffraction optics for 30 years. Chinama Optoelectronics has a strong R&D process in the international holographic light field information recording materials and derived holographic diffraction core optical technology. At present, we are the first to independently develop holographic waveguides, 85-degree ultra-large field of view retinal projection HOE, ultra-large area holographic waveguides and other products, with clear imaging, and are in an international leading position.
       Holographic optical waveguides based on holographic light field information recording materials are the mainstream optical solutions for global AR optics today, the next generation of computing interaction platforms, the core key to the next thirty years of civilization, and the basic core components of AR. In the field of AR, they are optical components with a higher strategic level than chips, and are widely used in industrial and consumer AR smart glasses, single-soldier combat helmets, traffic police helmet displays, armored vehicles and flight 360-degree surround aiming helmets, vehicle-mounted and airborne HUDs and other fields.

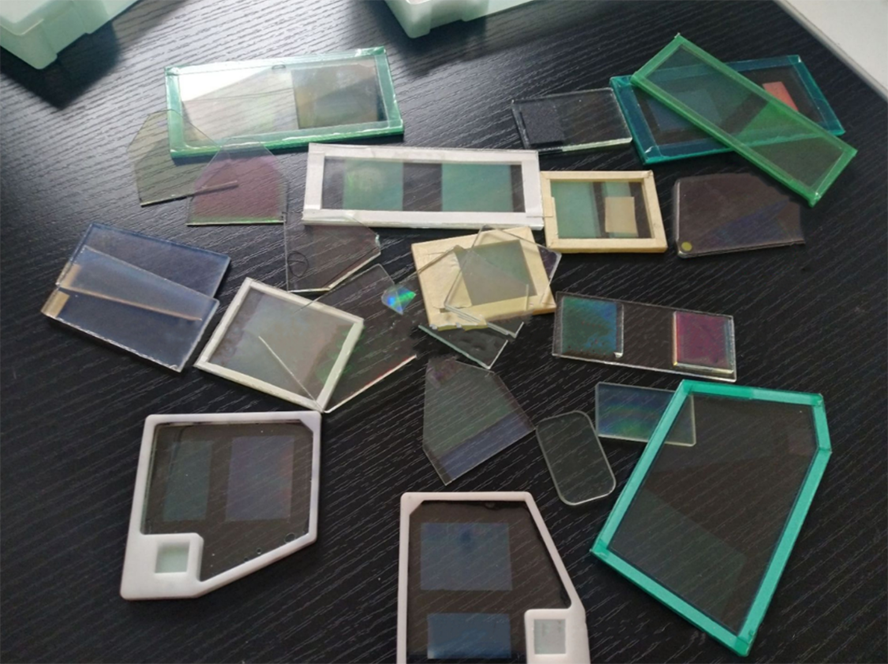

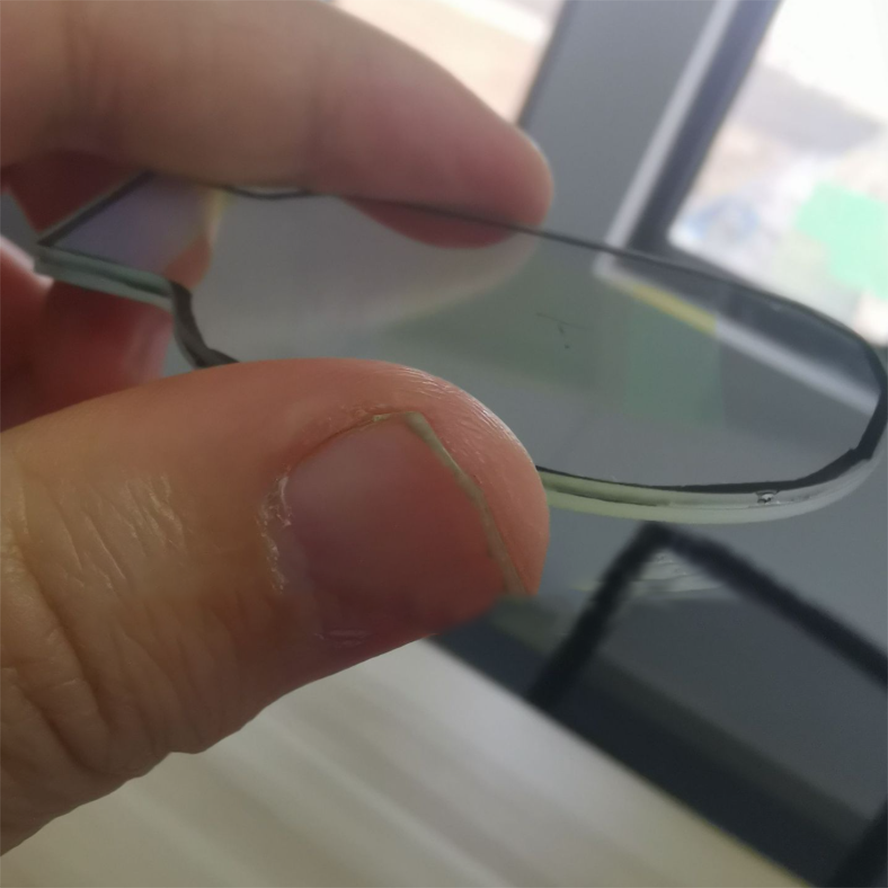

Waveguide: One-dimensional pupil expansion holographic diffraction grating waveguide

Material: Flat glass + holographic coating

Thickness: 1.3mm or 2.3mm

Light conversion efficiency: about 10%, equivalent to array optical waveguide

FOV: 22° (can be customized to 30°, 38°, 50°)

Transmittance: >85%

Exit pupil diameter: 15*12mm

Exit pupil distance: >15mm

Color: monochrome (please consult separately for color, three-piece color, two-piece color)

      Monochrome one-dimensional pupil expansion and color one-dimensional pupil expansion have good mass production. After the sample is suitable, you can place an order at the 5K-10K level. The mass production of two-dimensional pupil expansion is not yet fully automated on a large scale, and manual alignment is required. There are hundreds of pieces per month. Welcome to consult and place an order, WhatsApp +86 189 7939 8198
      Holographic optical waveguide supports customization of 20-50 degree field of view, RGB motion box 15mm or more, exit pupil 25mm or more, and AR retinal projection (also known as AR holographic display) HOE can achieve a field of view of 300 to 85 degrees.

Holographic diffraction waveguide has the following advantages ——

1. Diffraction optics, Bragg grating, flexible grating structure, high diffraction efficiency, high degree of freedom of grating combination;

2. Biaxial pupil expansion can achieve large viewing angle, large exit pupil and large eye distance;

3. Extremely high transparency and thin structure;

4. Volume holographic diffraction waveguide has high image resolution, low dispersion, good privacy, and no light leakage from the front;

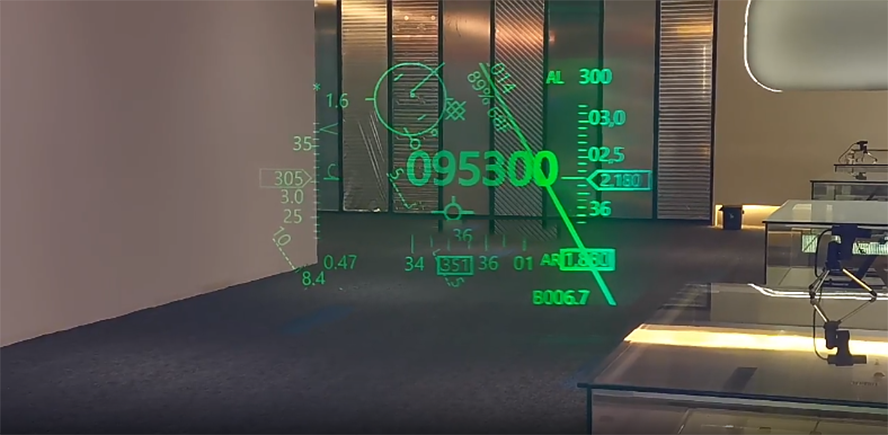

5. It can be prepared on a large area and used for ARHUD;

6. Holographic exposure process is efficient and low cost;

7. Small investment in mass production, high yield rate, and has the conditions to move towards consumer electronics level.

Disadvantages——

1. Professional holographic technology, high technical threshold;
2. High requirements for materials, system design, and manufacturing process;
Technological difficulties of volume holographic diffraction optical waveguide route:

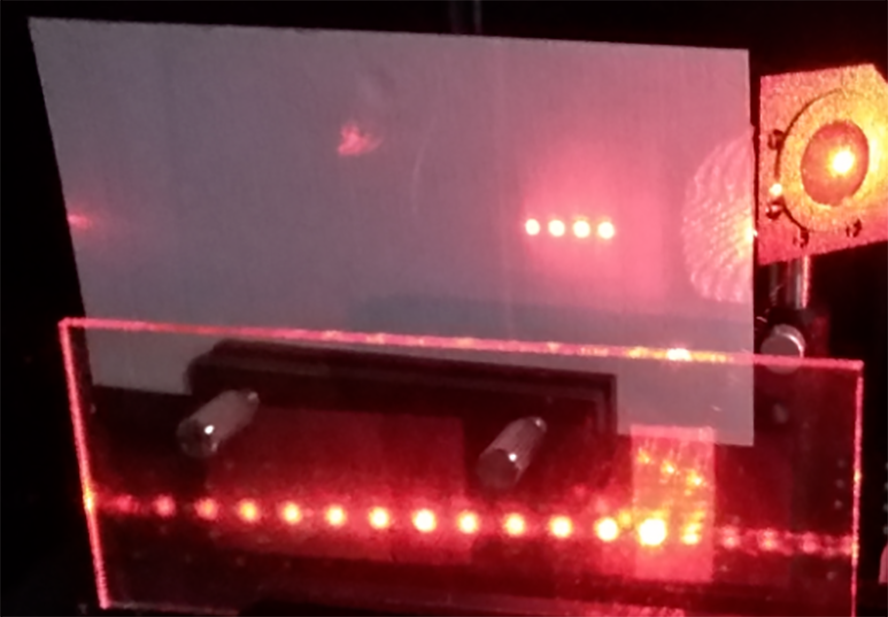

Before manufacturing holographic waveguides, precise simulation calculations are required to obtain a beam of specific specifications for exposure. The laser intensity, main frequency, bandwidth, coherence, and material formula and exposure environment used in the process are the optimal solutions obtained after countless optical experiments. Many parameters cannot be deduced through simple optical analysis. It is necessary to find the best parameters through real holographic experiments based on the characteristics of the materials. Therefore, this also increases the difficulty of technology research and development and market monopoly. Because any problem occurs in any manufacturing and testing link, each of the above processes must be rechecked one by one, and sometimes the correct parameters will be misjudged due to too many influencing factors in the process. These are not something that professional research units in ordinary countries can grasp. They must be patiently polished and accumulated by a team of top scientists for several years or more than ten years.

       We do not sell to individuals. Purchasing entities must first sign a confidentiality agreement and a purchase agreement, and regardless of the order quantity, full prepayment must be made.

Superlens is a revolutionary optical component that utilizes nanostructures to regulate light waves, breaking through the physical limitations of traditional lenses and possessing the characteristics of being thin, efficient, and multifunctional.

1. Infrared super lens
Features: Designed specifically for the infrared band, suitable for fields such as night vision, thermal imaging, and infrared detection.
Advantages: Lightweight, high transmittance, wide band operation, excellent imaging quality.
Applications: military, security, medical, and industrial testing, etc.

2. Holographic superlens
Features: Combining holographic technology and superlenses to achieve complex light field control and generate high-quality holographic images.
Advantages: High resolution, large viewing angle, fast response, suitable for dynamic display.
Applications: Augmented Reality (AR), Virtual Reality (VR), Holographic Display, and Data Storage.

3. Technical advantages
Nanostructured design: achieving efficient light field control through precise design.
Multi functional integration: supports multi band and multifunctional applications.
High cost-effectiveness: adopting advanced manufacturing technology, low cost, suitable for large-scale production.

4. Application Fields
Consumer electronics: used for mobile phones, AR/VR devices, etc.
Medical equipment: used for endoscopes, microscopes, etc.
Industrial testing: used for high-precision testing equipment.
Security monitoring: used for infrared monitoring and identification systems.

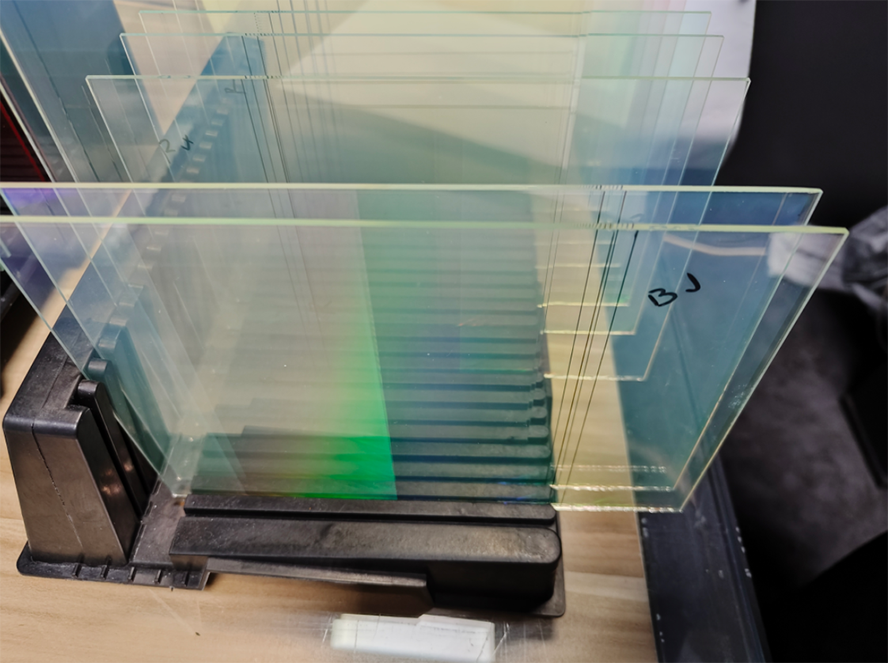

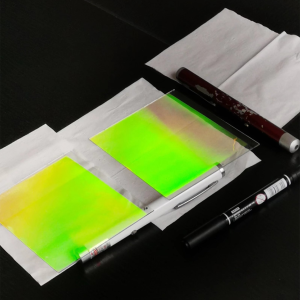

There are only three companies in the world that can manufacture large-area holographic optical waveguides, namely DigiLens from the United States, WaveOptics from the United Kingdom, and Chinama Optoelectronics Technology Group from China. Chinama large-area holographic optical waveguides have been widely used in AR equipment, industrial fields, commercial civilian and military equipment fields, and have established strong partnerships with well-known brands from around the world to help upgrade brands and enhance product appreciation potential.

Chinama Optoelectronics Technology is a leader in AR holographic diffraction optics in China, with a strong foundation in holographic lithography materials and AR chip level optics. The company has received support from a team of academicians from the Chinese Academy of Sciences in chip materials and optical design. After 30 years of arduous research and development, it has independently developed high-performance holographic optical waveguides, 85 degree retinal projection HOE and other products, with clear imaging and a leading international position
The company has the highest standard large-scale holographic diffraction device production line in China, equipped with 3 million sets of holographic optical waveguides as the core module of holographic sights and 500000 sets of complete machines; Core module for individual soldier and aviation AR integrated helmet – 1 million sets of holographic optical waveguides; The core module of aviation and vehicle mounted AR HUD has a production capacity of 100000 sets of large-area holographic optical waveguides.
The company mainly provides HUD core optical modules for automotive manufacturers in the automotive industry and holographic optical waveguide devices for display manufacturers in consumer electronics; We provide holographic sights for domestic export manufacturers and have now exported them in bulk to Southeast Asian countries. At present, the cooperative enterprises have domestic and international famous enterprise brands, such as BYD Automobile, Volkswagen, Geely Automobile, BAIC Group, Huawei Group, Xiaomi Group, OPPO Group, China Aerospace Group, Chinese Academy of Sciences, China Southern Group, China Star Optoelectronics Group, Hikvision Group, Unisplendor Zhanrui, etc.

      Chinama Optoelectronics Technology has inherited more than 20 years of technology and is a research and development-oriented group enterprise. From laser holographic micro-nano imprinted thin film optical materials to high-end laser holographic micro-nano optoelectronic system components, Chinama Optoelectronics Technology is one of the few group enterprises in China that has mastered the preparation of laser holographic diffraction gratings from the early stage of lithography to the subsequent full process. The holographic diffraction optical elements and holographic optical waveguides developed and manufactured can be widely used in aerospace, flight aiming helmets, infantry aiming helmets, rapid aiming devices for individual weapons, benchmark measurement, medical equipment, spectrometers, smart electronic products, 3D printers, 3D scanners, network and information security technology (hardware and software) and systems, Internet of Things, electronic special equipment and instruments, advanced perception and reconnaissance detection, blockchain technology, virtual augmented reality technology, simulation technology, space-time benchmark technology and equipment and other fields. In particular, the AR augmented reality core hardware developed and manufactured by the group has broad market application scenarios – holographic waveguide gratings, AR retinal projection lens gratings, etc. The products have a small shrinkage ratio, high imaging resolution, stable state, and superior comprehensive performance. Some technical indicators even exceed the US Eotech-holographic technology.
